TECHNICAL DATA

Energy Class

ControlST

ST

4 speeds electronic 'SOFT TOUCH' control with automatic switch-off

Width60 | 90

60

60 cm Width

90

90 cm Width

MotorH850 | AME | AMF | AMR

H850

AIDA 60 - AIDA 90
Airflow IEC: 322-516 (573) m3/h
Motor Pressure intensive speed: 582 Pa
Lights: Power LED (2 x 1,2 W)
Noise Level: 52-64 (67) dBA

AME | AMF | AMR

AIDA 60

Motor Airflow IEC Pressione* Lights Noise Level
AME12 320-522 (600) m3/h 690 Pa LED 56-67 (71) dBA
AMF10 226-380 (530) m3/h 608 Pa LED 52-62 (69) dBA
AMF13 335-533 (605) m3/h 770 Pa LED 57-68 (71) dBA
AMR09 245-443 (575) m3/h 568 Pa LED 48-59 (65) dBA
AMR10 175-527 (634) m3/h 692 Pa LED 39-62 (66) dBA
AMR20 272-680 (727) m3/h 586 Pa LED 48-68 (69) dBA

*: Motor Pressure intensive speed

AIDA 90

Motor Airflow IEC Pressione* Lights Noise Level
AME12 332-550 (635) m3/h 692 Pa LED 56-67 (71) dBA
AMF10 230-390 (555) m3/h 608 Pa LED 52-62 (69) dBA
AMF13 345-546 (620) m3/h 768 Pa LED 57-68 (71) dBA
AMR09 248-448 (590) m3/h 566 Pa LED 48-59 (65) dBA
AMR10 178-536 (650) m3/h 590 Pa LED 39-62 (66) dBA
AMR20 270-700 (750) m3/h 580 Pa LED 48-68 (69) dBA

*: Motor Pressure intensive speed

LightingLED

LED

LED lighting

Antigrease filtersFALL

FALL

Antigrease anodized aluminium filters

Carbon filtersPCR5* | PCR2*

PCR5*

Carbon Filter - PCR5 200X270X10 mm

PCR2*

Polyester carbon filter 200x460x10 cm

FinishingPVE

PVE

Glass Panel

JunctionØ150

Ø150

Round junction with dimensions Ø 150 mm

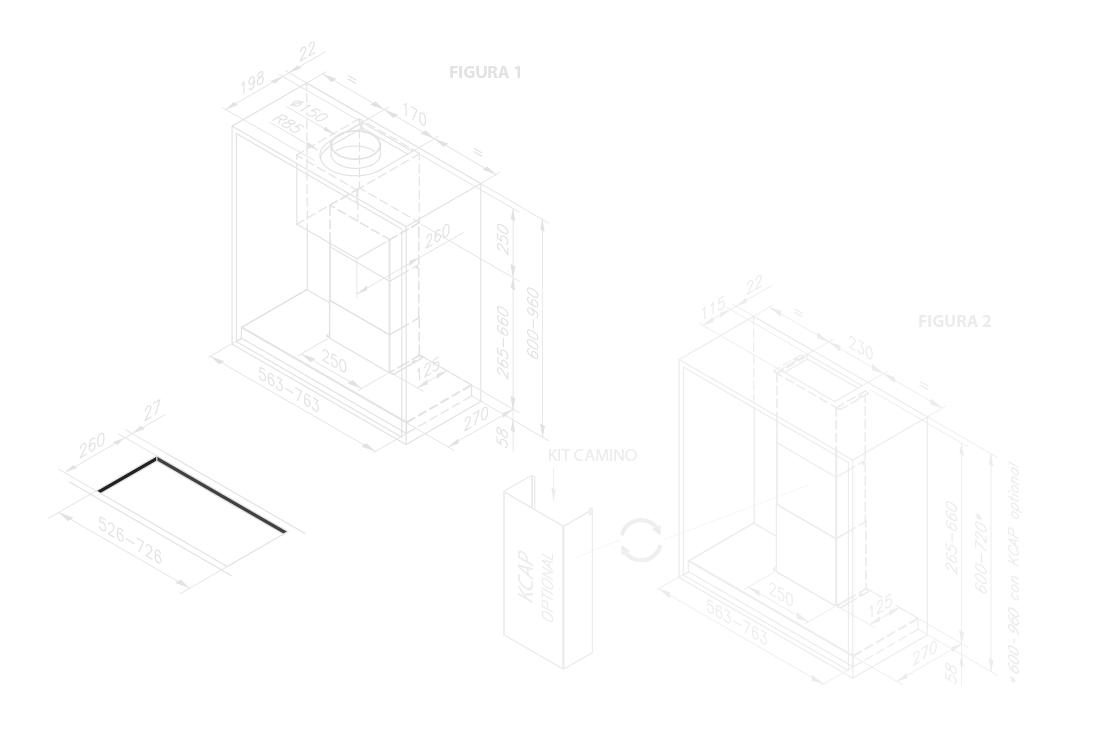

OptionalKCAP

KCAP

Aesthetic chimney kit for Aida optional

* = Optional
Aida 60 needs N.1 PCR5 carbon filter, Aida 90 needs N.1 PCR2 carbon filter.
